Cyclomatic Complexity(McCabe)

개념
- 소프트웨어 복잡도 측정을 위해 사용되는 소프트웨어 지표 - Thomas McCabe에 의해서 개발됨 - McCabe 의 회전 복잡도는 상세 설계가 완료된 후부터 사용이 가능 하며, 프로그램의 제어 흐름도를 기반으로 분석 - 복잡도가 낮을수록 프로그램이 구조적으로 안정되었다는 의미이며, 높을수록 프로그램이 비 구조적이며 불안정하다는 의미

1. Cyclomatic Complexity의 개요

가. Cyclomatic Complexity의 정의

- 소프트웨어 복잡도 측정을 위해 사용되는 소프트웨어 지표

- Thomas McCabe에 의해서 개발됨

- McCabe 의 회전 복잡도는 상세 설계가 완료된 후부터 사용이 가능 하며, 프로그램의 제어 흐름도를 기반으로 분석

- 복잡도가 낮을수록 프로그램이 구조적으로 안정되었다는 의미이며, 높을수록 프로그램이 비 구조적이며 불안정하다는 의미



나. Cyclomatic Complexity의 공식

 CC = V(G) = e – n +2p

- e : Flowgraph 내의 에지 수

- n : Flowgraph 내의 노드 수

- p : 연결되어있지 않는 Flowgraph 부분의 수

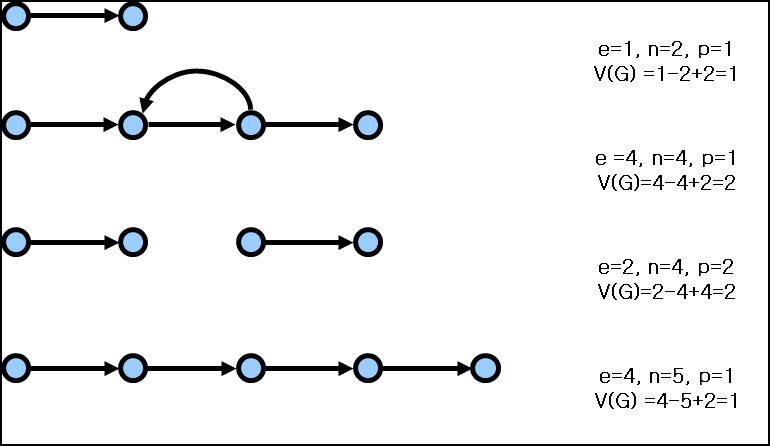

다. Cyclomatic Complexity의 예





2. Cyclomatic Complexity 계산 예(Another)

가. 계산

-  의사결정 수 + 1 또는 폐쇄영역(enclosed areas) + 1



    V(G) = 3+1 = 4





나. Cyclomatic Complexity: Flow Chart



Flow Chart





  • V(G) is computed in one of three ways:

1. The number of regions corresponds to the cyclomatic complexity. (ex) V(G) = 4, ∵ Flow graph has 4 regions.

2. Cyclomatic complexity V(G), for a flow graph G, is defined as V(G) = E – N + 2,

Where E is the number of flow graph edges, and N is the number of flow graph nodes.

(ex) V(G) = 11 edges – 9 nodes + 2 = 4



3. Cyclomatic complexity V(G), for a flow graph G, is defined as V(G) = P + 1, where P is the number of predicate nodes contained in the flow graph G.
            (ex) V(G) = 3 predicate nodes + 1 = 4.

predicate nodes: (1), (2,3), (6)

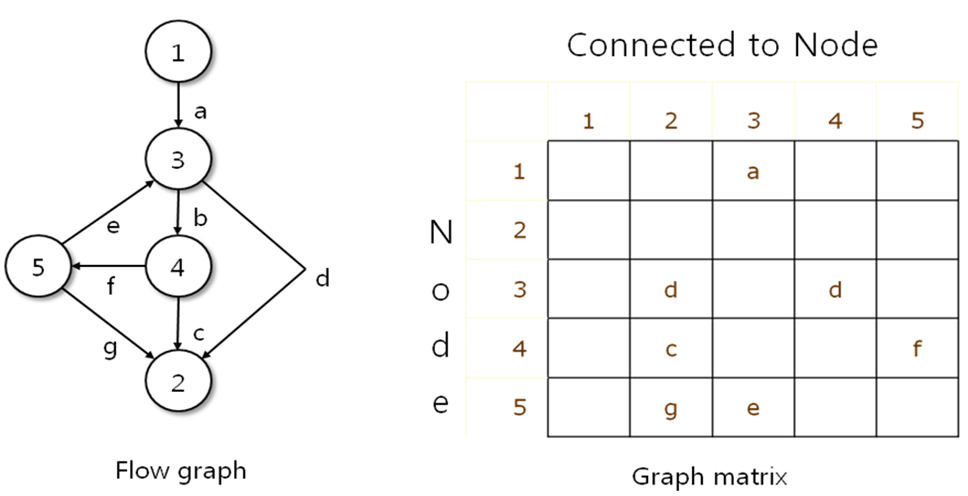

참고 : Graph Matrices

  • a square matrix whose size is equal to the number of nodes on the flow graph.
  • Each row and column corresponds to an identified node, and matrix entries correspond to connections (an edge) between nodes.
  • Each node on the flow graph is identified by numbers, while each edge is identified by letters.
  • To this point, the graph matrix is nothing more than a tabular representation of a flow graph.
  • By adding a link weight to each matrix entry, the graph matrix can become a powerful tool for evaluating program control structure.
  • The link weight provides additional information about control flow.
  • In its simplest form, the link weight is 1 (a connection exists) or O (a connection does not exist).
  • But link weights can be assigned other, more interesting properties:
    • The probability that a link (edge) will be executed.
    • The processing time expended during traversal of a link.
    • The memory required during traversal of a link.
    • The resources required during traversal of a link.







Control Structure Testing



< >Condition testing: a test case design method that exercises the logical conditions contained in a program moduleSimple conditionCompound conditionData flow testing: selects test paths of a program according to the locations of definitions and uses of variables in the programLoop Testing: a white-box testing that focuses exclusively on the validity of loop construct.

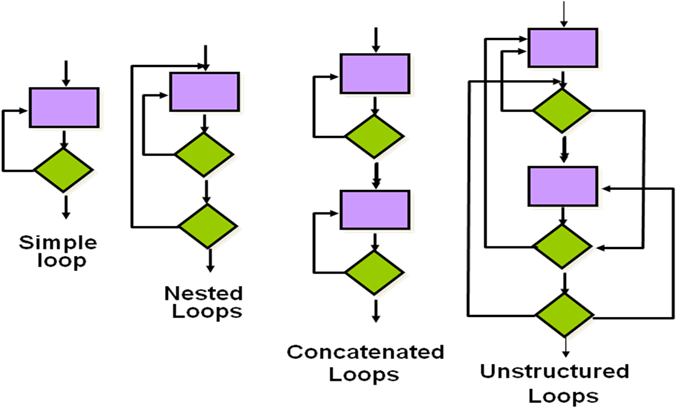

Loop

내용

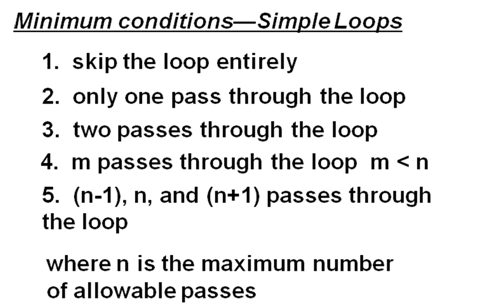

Simple Loops

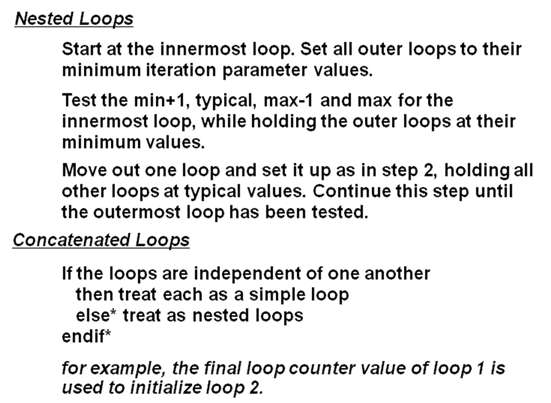

Nested Loops
